HIGHLIGHT:

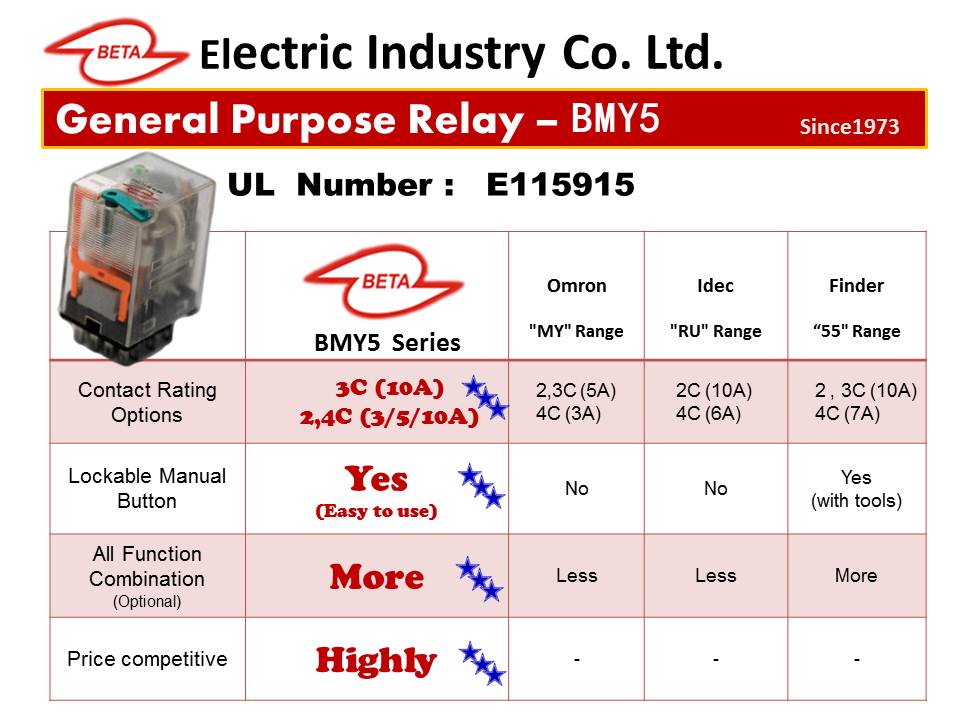

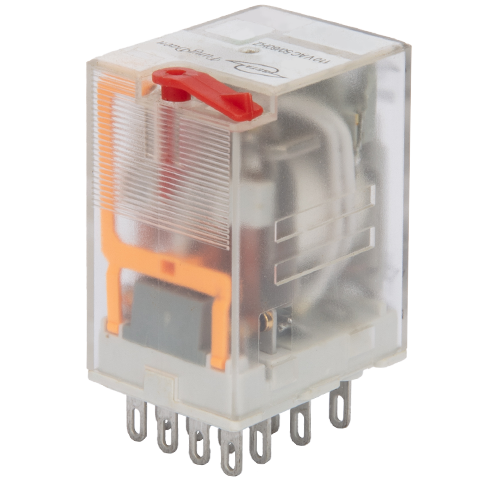

- one of the most popular general purpose relays: 5A relay (relé industrial, relé de propósito general, relé miniatura)
- 10A relay is avilable on market right now!!
- can replace the below relays:
Omron relay: MY
Zelio relay: RXM
Magnecraft relay: 782XBX_/ 782XCX_/ 782XDX_
Finder relay: 55
Idec relay: RU/RM2
** more cross reference detail? please check this link. **
- mechianical latching relay by manual button
- lockable test button by one easy step, switching the lever
- wide choice of coil volts: 6V, 12V, 24V, 48V, 110V, 120V, 220V, 230V, 240V
- relay socket PYF-08A, PTF-14A for plug-in style relay
- can be pcb relay (pcb mounted pins if choosing P type instead of S type)
- UL listed: E115915
CHOICE:
- 3 contact load:
* 3 amp 28VDC, 3 amp 240VAC
* 5 amp 28VDC, 5 amp 277VAC
* 10 amp 120 VAC, 8 amp 28VDC, 8 amp 277VAC
- configuration (changeover):
* 2C (8 pin/ DPDT)
* 3C (11 pin/ 3PDT)
* 4C (14 pin/ 4PDT)
- terminal types: PCB mounted terminlal or plug-in style
- cover choice; plain cover (clear cover)
- functions: LED indicator, flag indicator, manual button (test button)
- volts range:
DC relay: 6V, 12V, 24V, 48V, 110V
AC relay: 110V, 120V, 220V, 230V, 240V
- relay socket (din rail base):
* PYF-08A for BMY5-2C
* PYF-11A for BMY5-3C
* PYF-14A for BMY5-4C
End Application:
|
spec |
MY5 |
LY5 |
|
application |
control panel |
|
|
sequence control |
||
|
direct load switching |
||
|
industrial automation controllers |
||
|
Public Adress |
video projector system |
|
|
Surge Arrester |
||
**more info? you can download the Spec Data here. **
BETA BREIF:
- BETA relay has been a relay manufacturer almost 50 years (BETA Relay ha sido un fabricante de relés durante casi 50 años)
- BETA relay has worked with world famous brand as their OEM/ ODM over 20 years. (Relé BETA ha trabajado con marca de fama mundial como su OEM / ODM más de 20 años)
- Our insistence on quality and service has earned beta relay a good reputation among our users and clients.(Nuestra insistencia en la calidad y el servicio ha ganado relé beta de una buena reputación entre nuestros usuarios y clientes.)
- We are specialized in industrial relay (BTA3, BTA2, BTA5, BTA7), general purpose relay (BLY5, BMY5, BTA6), miniature relay (BLY5, BMY5).
- Estamos especializados en el relé industrial (BTA3, BTA2, BTA5, BTA7), relé de propósito general (BLY5, BMY5, BTA6), relé miniatura (BLY5, BMY5).
- See more about BETA relay, please click "ABOUT US". (Ver más sobre relé BETA, por favor haga clic en "Sobre nosotros".)
FEATURES
- 3A/5A/10A of general purpose relay.
- DPDT, 3PDT and 4PDT contact arrangements.

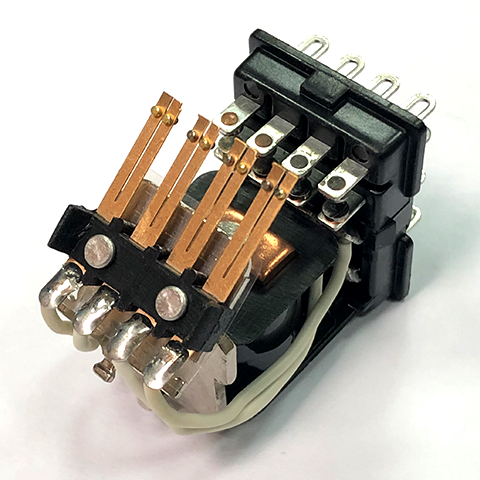

- Bifurcated contact: to increase contact reliability.
- LED status lamp: shows coil “on” or “off” status.
- Rotary button: Allows for manual operation of relay without the need for coil power, ideal for field service personnel to test control circuits.
- The full feature relay includes the combination for rotary button or plain button or light or indicator flag. They can be chosen for every combination.
- Cover adapters: din rail flange adapter or top/bottom flange adapter, allows the BMY5 relay to be direct mounted to a din rail or panel.
- UL: E115915/TUV
LINEUP
- STANDARD COIL POLARITY
|
Contact Form |
Current |
Plug-in socket/solder terminals |
||||
|
Standard |
With LED |
With LED Indicator |
With LED Indicator, plain button |
With LED Indicator, rotate button |
||
|
DPDT |
3A |
BMY5-2C1-S-CW |
BMY5-2C1-S-CWL |
BMY5-2C1-S-CL |
BMY5-2C1-S-CML |
BMY5-2C1-S-CM4L |
|
Bifurcated 3A |
BMY5-2C3-S-CW |
BMY5-2C3-S-CWL |
BMY5-2C3-S-CL |
BMY5-2C3-S-CML |
BMY5-2C3-S-CM4L |
|
|
5A |
BMY5-2C5-S-CW |
BMY5-2C5-S-CWL |
BMY5-2C5-S-CL |
BMY5-2C5-S-CML |
BMY5-2C5-S-CM4L |
|
|
10A |
BMY5-2C10-S-CW |
BMY5-2C10-S-CWL |
BMY5-2C10-S-CL |
BMY5-2C10-S-CML |
BMY5-2C10-S-CM4L |
|
|
3PDT |
10A |
BMY5-3C10-S-CW |
BMY5-3C10-S-CWL |
BMY5-3C10-S-CL |
BMY5-3C10-S-CML |
BMY5-3C10-S-CM4L |
|
4PDT |
3A |
BMY5-4C1-S-CW |
BMY5-4C1-S-CWL |
BMY5-4C1-S-CL |
BMY5-4C1-S-CML |
BMY5-4C1-S-CM4L |
|
Bifurcated 3A |
BMY5-4C3-S-CW |
BMY5-4C3-S-CWL |
BMY5-4C3-S-CL |
BMY5-4C3-S-CML |
BMY5-4C3-S-CM4L |
|
|
5A |
BMY5-4C5-S-CW |
BMY5-4C5-S-CWL |
BMY5-4C5-S-CL |
BMY5-4C5-S-CML |
BMY5-4C5-S-CM4L |
|
|
10A |
BMY5-4C10-S-CW |
BMY5-4C10-S-CWL |
BMY5-4C10-S-CL |
BMY5-4C10-S-CML |
BMY5-4C10-S-CM4L |
|

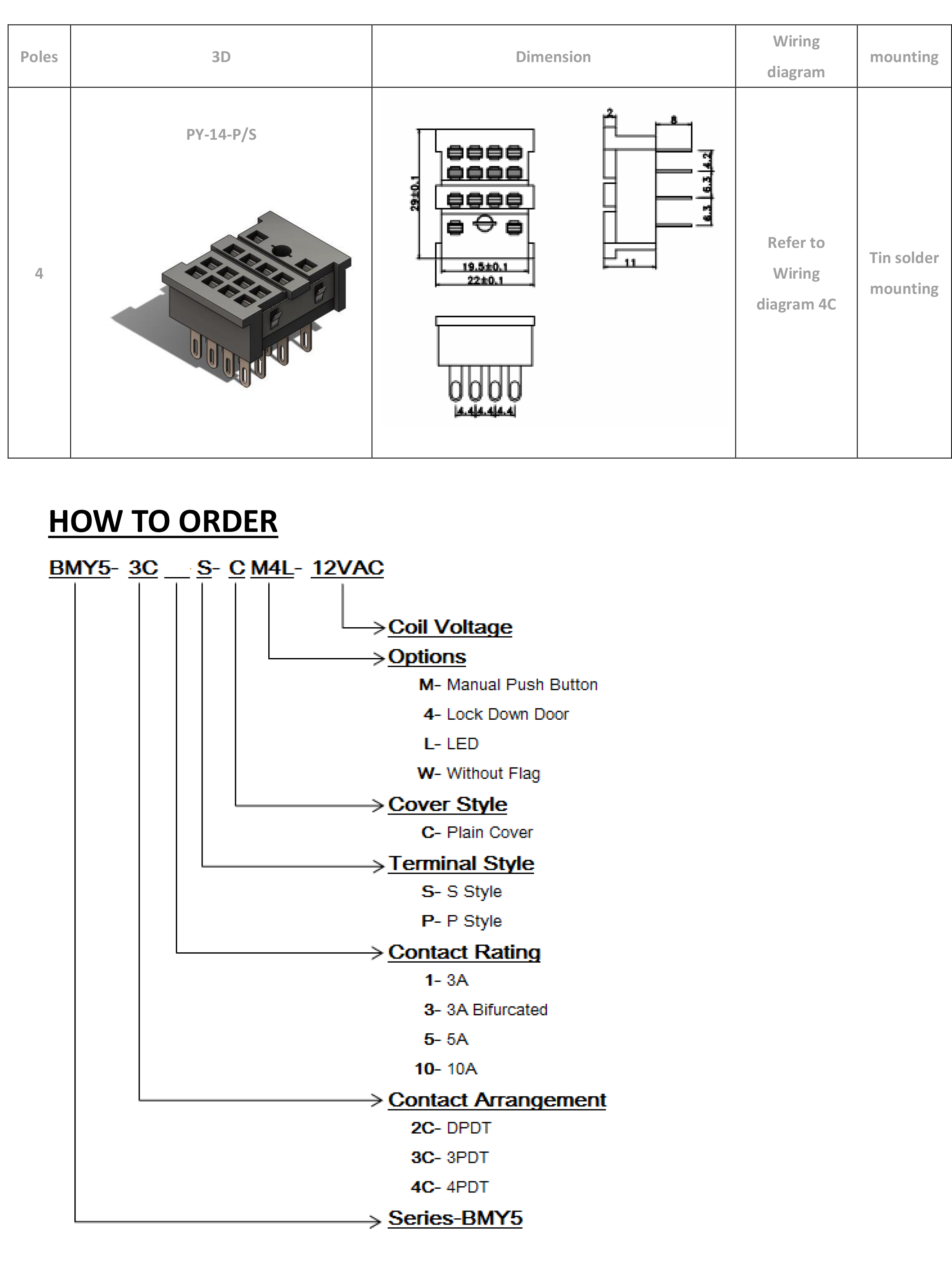

Note: You can choose two different types of terminals by switching the codes. For instance: BMY5-2C3-S-CW (S type) can be changed to BMY5-2C3-P-CW (P type).
- SOCKETS & ACCESSARIES
|
Contact Form |
Front connecting socket (for 3A/5A) (DIN-track/screw mounting) |
Top cover din adapter |
Top or bottom flange adapter |
|
DPDT |
PYF-08A, PY-08-P/S |
BLY6-59-A |
BLY6-59-B |
|
3PDT |
None |
BLY6-59-A |
BLY6-59-B |
|
4PDT |
PYF-14, PYF-14A, PY-14-P/S |
BLY6-59-A |
BLY6-59-B |
SPECIFICATION
- COIL RATING
|
Rated Voltage |
Rated Current (mA) |
Coil Resistance |
Must Operate Voltage |
Must Release Voltage |
Max. Voltage |
Power Consumption (Approx.) |
||
|
50 Hz |
60 Hz |
% of Rated Voltage |
||||||
|
AC |
6V |
331 |
284 |
9.5 |
80% |
30% |
110% |
1.2VA |
|
12V |
94.2 |
73.5 |
46 |
|||||
|
24V |
54.5 |
46.5 |
180 |
|||||
|
48V |
24.1 |
18.2 |
770 |
|||||
|
110V |
11.2 |
8.1 |
3830 |
|||||
|
120V |
11.5 |
8.4 |
4430 |
|||||
|
220/230V |
6.9 |
5.8 |
15000 |
|||||
|
240V |
6.1 |
3.8 |
15700 |
|||||
|
DC |
6V |
150 |
40 |
75% |
10% |
0.89~1.1W |
||
|
12V |
74.5 |
160 |
||||||
|
24V |
36 |
650 |
||||||
|
48V |
14.5 |
2600 |
||||||
|
110V |
9.7 |
11000 |
||||||
Note:
1. The test value of coil resistance was at a temperature of 25°C, humidity 35% to 70%.
2. The operating parameter is measured at c coil temperature of 25°C indicated in the percentage of the rated voltage.
3. The coil current is measured as the real current consumption under the rated voltages.
- CONTACT RATINGS
|
Item |
BMY5-2C1/4C1 (Without TUV) |
BMY5-2C3/4C3 (Bifurcated) |
BMY5-2C5/4C5 |
BMY5-2C10/3C10/4C10 |
|
Resistive Load (cosφ=1) |
UL:3A 28VDC, 3A 120VAC, 3A 240VAC |
TUV:3A 28VDC, 3A 240VAC UL: 3A 28VDC, 3A 120VAC, 3A 277VAC |
TUV:5A 28VDC, 5A 240VAC UL:5A 28VDC, 5A 277VAC |
TUV:8A 28VDC, 10A 120VAC UL:8A 28VDC, 8A 277VAC, 10A 120VAC |
|
Inductive Load (TUV) (cosφ=0.4, L/R=7ms) |
None |
1A 240VAC 1.5A 24VDC |
2A 240VAC 2A 24VDC |
5A 240VAC 5A 24VDC |
|
Motor (UL) |
1/10 HP, 120VAC |
1/10 HP, 120VAC |
1/10 HP, 120VAC |
1/3 HP, 120VAC |
|
1/10 HP, 240VAC |
1/10 HP, 240VAC |
1/10 HP, 240VAC |
1/2 HP, 277VAC |
|
|
Carry Current |
3A |
3A |
5A |
10A |
|
Max. Switching Voltage |
300VAC 125VDC |
300VAC 125VDC |
300VAC 125VDC |
300VAC 125VDC |
|
Max. Switching Current |
5A |
5A |
8A |
12A |
|
Max. Switching Power |
831VA 84W |
831VA 84W |
1385VA 140W |
2216VA 224W |
- CHARACTERISTIC
|
Item |
All Relays |
|
Contact Resistance |
3A: 50mΩ Max. 5A/10A: 100mΩ Max. |
|
Contact Material |
3A: Ag Gold Plated. 5A/10A: AgNi |
|
Operate Time |
20 ms Max. |
|
Release Time |
15 ms Max. |
|
Max. Operating Frequency |
Mechanical: 18,000 operations/hr Electrical: 1,800 operations/hr (under rated load) |
|
Insulation Resistance |
500MΩ minimum at 500VDC |
|
Dielectric Strength |
Between open contact: 1000VAC for 1 minute. Coil to frame: 1500VAC for 1 minute. Contact to coil: 1500VAC for 1 minute. Pole to pole: 1500VAC for 1 minute. |
|
Vibration Resistance |
Destruction: 10 to 55 Hz, 0.5 mm single amplitude (1.0 mm double amplitude) Malfunction: 10 to 55 Hz, 0.5 mm single amplitude (1.0 mm double amplitude) |
|
Shock Resistance |
Destruction: 1000 m/s² Malfunction: 200 m/s² |
|
Endurance |
Mechanical Life: 10,000,000 operations. Electrical Life: 100,000 operations. |
|
Ambient Temperature |
-25°C to +50°C (AC); -25°C to +55°C (DC) |
|
Ambient Humidity |
Operating: 5% to 85% |
|
Weight |
35g |

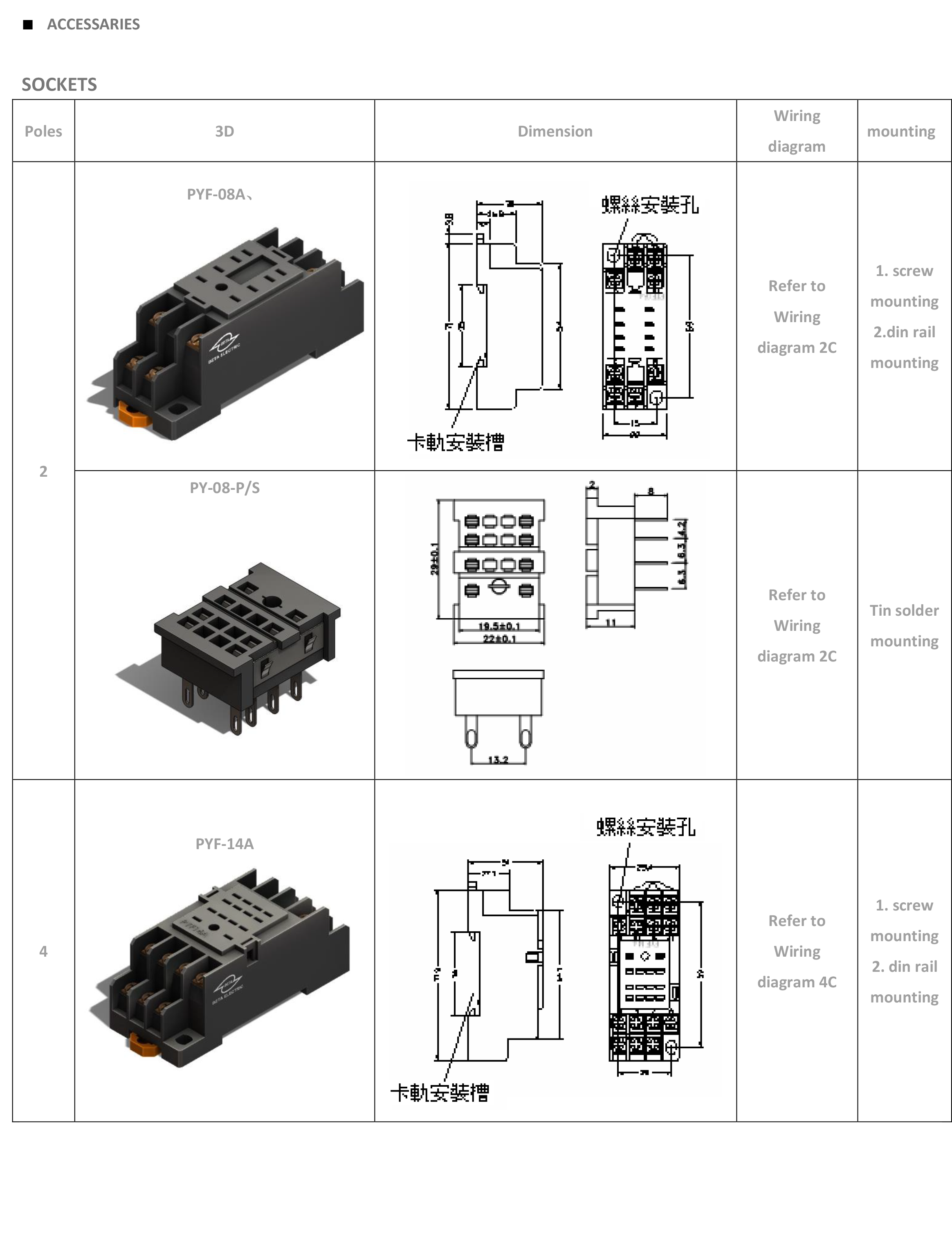

- SOCKETS
|
Contact Form |
Model (for 3A/5A) |
Dielectric withstand voltage |
Insulation Resistance |
|
DPDT |
PYF-08A |
1800VAC. 1mA/min |
500MΩ minimum at 500VDC |
|
PY-08-P/S |
1800VAC. 1mA/min |
500MΩ minimum at 500VDC |
|
|
4PDT |
PYF-14 |
1800VAC. 1mA/min |
500MΩ minimum at 500VDC |
|
PYF-14A |
1800VAC. 1mA/min |
500MΩ minimum at 500VDC |
|
|
PY-14-P/S |
1800VAC. 1mA/min |
500MΩ minimum at 500VDC |
DIMENSION
