Mechanical Indicator Relay

  1. Mechanical Indicator Relay

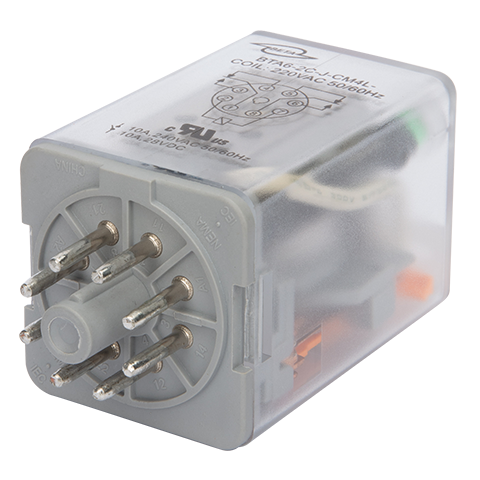

BTA6

Detail

HIGHLIGHT

  • one of the most popular general purpose relays: 10A relay (relé industrial, relé de propósito general, relé de potencia)
  • 16A relay is avilable on market right now!!
  • can replace the below relays:

             Omron relay: MK

             Zelio relay (Schneide): RUMC

             Magnecraft relay: 750

             Finder relay: 55

             Idec relay: RU/RM2

             ** more cross reference detail? please check this link **

  • mechianical latching relay by manual button
  • lockable test button by one easy step, switching the lever
  • wide choice of coil volts: 6V, 12V, 24V, 48V, 110V, 120V, 220V, 230V, 240V
  • relay socket Pf-083A, PF-113A for plug-in style relay
  • octal base relay
  • UL listed: E115915

CHOICE

  • 2 contact load:

          * 10 amp 28vdc, 10 amp 240vac

          * 16 amp 28vdc, 16 amp 277vac

  • octal configuration (changeover):

           2C (8 pin/ DPDT)

          3C (11 pin/ 3PDT)

  • terminal types: plug-in style ( sockets are avialable!!)
  • cover choice; dust cover
  • functions: LED indicator, flag indicator, manual button (lockable test button)
  • volts range:

          DC relay: 6V, 12V, 24V, 48V, 110V

          AC relay: 110V, 120V, 220V, 230V, 240V

  • relay socket (din rail base):

          * PF-083A for BTA6-2C

           * PF-113A for BTA6-3C

End Applications

  • electric rolling door
  • power control system/ industrial automation
  • printing machine

BETA BREIF

  • BETA relay has been a relay manufacturer almost 50 years (El relé BETA ha sido un fabricante de relés durante casi 50 años.)
  • BETA relay has worked with world famous brand as their OEM/ ODM over 25 years. (Relé BETA ha trabajado con marca de fama mundial como su OEM / ODM más de 25 años)
  • Our insistence on quality and service has earned beta relay a good reputation among our users and clients.(Nuestra insistencia en la calidad y el servicio ha ganado relé beta de una buena reputación entre nuestros usuarios y clientes.)
  • We are specialized in industrial relay (BTA3, BTA2, BTA5, BTA7), general purpose relay (BLY5, BMY5, BTA6), miniature relay (BLY5, BMY5).Estamos especializados en el relé industrial (BTA3,BTA2, BTA5, BTA7), relé de propósito general (BLY5, BMY5, BTA6), relé miniatura (BLY5, BMY5).
  • See more about BETA relay, please click “ABOUT US”. (Ver más sobre relé BETA, por favor haga clic en "Sobre nosotros".)

FEATURES

  • Shows relay status in manual or powered condition.
  • Shows coil“on”or“off”status ideal in low light conditions.
  • The high coil Insulation reach to 2500V，Large capacity 16A.
  • Allows for manual operation of relay without the need for coil power. ideal for field service personnel to test control circuits
  • When activated, holds push button and contacts in the operate position. excellent for analyzing circuit problems
  • The full feature relay includes the combination for rotary button or plain button or light or indicator flag. they can be chosen for every combination
  • Allows operator to remove relays from sockets more easily than conventional relays
  • Used for identification of relays in multi-relay circuits
  • UL E115915

LINEUP

  • STANDARD COIL POLARITY (10amp)
Type Contact form Plug-in Terminals
假日價Standard With LED and flag With LEDpush button and flag With LED, lock downpush button and flag
房型U wiring 平日價SPDT 假日價BTA6-1C-U-CW BTA6-1C-U-C-L BTA6-1C-U-C-ML BTA6-1C-U-C-M4L
平日價DPDT BTA6-2C-U-CW BTA6-2C-U-C-L BTA6-2C-U-C-ML BTA6-2C-U-C-M4L
平日價3PDT BTA6-3C-U-CW BTA6-3C-U-C-L BTA6-3C-U-C-ML BTA6-3C-U-C-M4L
房型J wiring 平日價SPDT BTA6-1C-J-CW BTA6-1C-J-C-L BTA6-1C-J-C-ML BTA6-1C-J-C-M4L
平日價DPDT BTA6-2C-J-CW BTA6-2C-J-C-L BTA6-2C-J-C-ML BTA6-2C-J-C-M4L
 3PDT BTA6-3C-J-CW BTA6-3C-J-C-L BTA6-3C-J-C-ML BTA6-3C-J-C-M4L
  • STANDARD COIL POLARITY (16amp)
Type Contact form Plug-in Terminals
假日價Standard With LED and flag With LEDpush button and flag With LED, lock downpush button and flag
房型U wiring 平日價SPDT 假日價BTA6-1C16-U-CW BTA6-1C16-U-C-L BTA6-1C16-U-C-ML BTA6-1C16-U-C-M4L
平日價DPDT BTA6-2C16-U-CW BTA6-2C16-U-C-L BTA6-2C16-U-C-ML BTA6-2C16-U-C-M4L
平日價3PDT BTA6-3C16-U-CW BTA6-3C16-U-C-L BTA6-3C16-U-C-ML BTA6-3C16-U-C-M4L
房型J wiring 平日價SPDT BTA6-1C16-J-CW BTA6-1C16-J-C-L BTA6-1C16-J-C-ML BTA6-1C16-J-C-M4L
平日價DPDT BTA6-2C16-J-CW BTA6-2C16-J-C-L BTA6-2C16-J-C-ML BTA6-2C16-J-C-M4L
 3PDT BTA6-3C16-J-CW BTA6-3C16-J-C-L BTA6-3C16-J-C-ML BTA6-3C16-J-C-M4L
  • SOCKETS & ACCESSARIES
Type (FOR 10A) Sockets
平日價8-pin (1C/2C) 假日價PF-083A
平日價11-pin (3C) 假日價PF-113A

SPECIFICATIONS

  • COIL RATINGS
Rated voltage Rated current Coil resistance (Ω) Must operate voltage  Must release voltage  Max. voltage  Power consumption (approx.)
假日價50 Hz 60  Hz % of rated voltage
房型AC 平日價6V 假日價684  597 4.2 85 30 110 2.0-2.75VA
平日價12V 假日價294  240 18
平日價24V 假日價114.7  95.9 72
 48V  73.8 65.2  290
110/120V   22.5 19.2  1700
220V   15.5 13.1  7200
 230V 13.4 11.1  8000
平日價240V 假日價11.4 10.1  9000
DC  6V 169.6  32 80 10 1.2-2.0W
 12V 106.2  120
 24V  52 470
平日價48V 25.1 1800
 110V 10.6  10000
Note:
  1. The coil resistance is measured at a coil temperature of 25℃ and 35%-70% of humidity.
  2. The operating parameter is measured at a coil temperature of 25℃ indicated in the percentage of the rated voltages.
  3. The coil rated current is measured as the real current consumption under the rated voltages.
  • CONTACT RATINGS
Item 1C/2C/3C 1C/2C/3C
房型Resistive load(CosΦ=1) 平日價10A 240VAC
10A 28VDC		 假日價16A 277VAC
16A 28VDC
房型Motor 平日價1/3HP，120VAC
1/2HP，240VAC		 假日價1/3HP，120VAC
1/2HP，240VAC
房型Max. switching voltage 平日價250VAC125VDC 假日價300VAC125VDC
房型Max. switching current 平日價10A 假日價16A
房型Max. switching power 平日價2400VA 280W 假日價4432VA，448W
  • CHARACTERISTICS
Item All Relays
房型Contact resistance 平日價100mΩ Maximum.
房型Contact Material 平日價10A:AgNi，16A:AgSnO2
房型Operate time 平日價AC: 20mS Maximum, DC:20mS Maximum
房型Release time 平日價AC: 15mS Maximum, DC: 15mS Maximum
房型Max. operating frequency 平日價Mechanical: 18,000 operations/h
Electrical: 1,800 operations/h (under rated load)
Insulation resistance 1000MΩ Minimum. At 500VDC.
Dielectric strength  Between open contact: 1500 VAC for 1 minute.
Between contact and coil: 2500VAC for 1 minute.
Between live parts and ground: 1500VAC for 1 minute.
Vibration resistance Destruction: 10 to 55 Hz, 0.75-mmsingle amplitude(1.5-mm double amplitude)
Malfunction: 10 to 55 Hz, 0. 5-mmsingle amplitude(1.0-mm double amplitude)
Shock resistance Destruction: 1,000 m/s²(approx. 100G)
Malfunction: 1,00 m/s² (approx. 10G)
房型Endurance 平日價Mechanical: 10,000,000 operations min (at 18,000 operations/h)
Electrical: 100,000 operations min (at 1,800 operations/h under rated load)
Ambient temperature Operating: -30℃ to +50℃(AC); -30℃ to +65℃(DC)
Ambient humidity Operating: 5% to 85%
Weight 88g
  • SOCKETS SPECIFICATION
Pole Sockets Carry current Dielectric withstand voltage Insulation resistance
房型SPDT/DPDT 平日價PF-083A 假日價10A 1500VAC,1min 500MΩ Minimum. At 500VDC.
房型3PDT 平日價PF-113A 假日價10A
